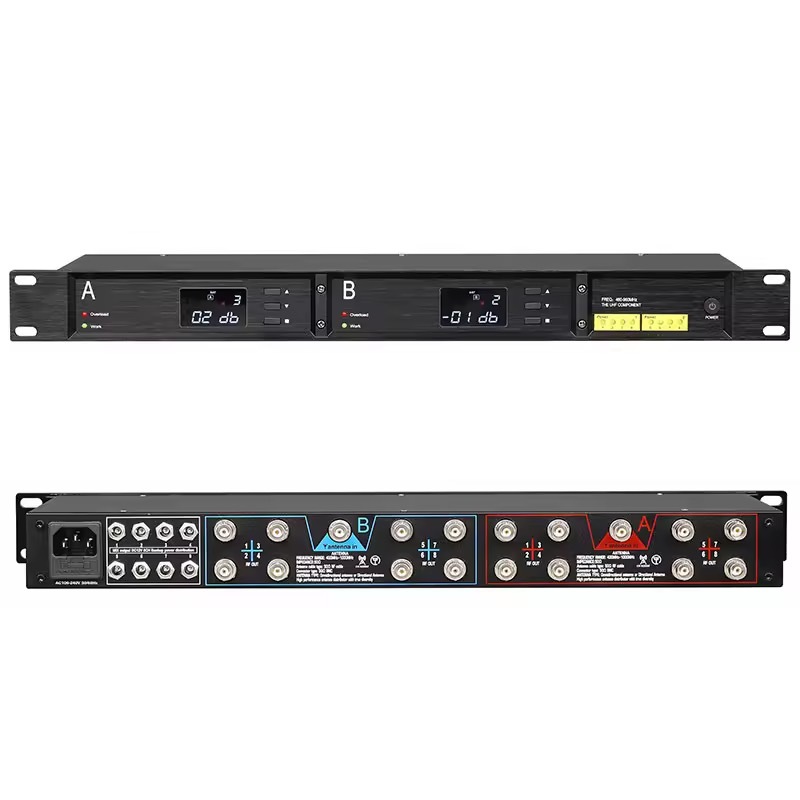

TRAIS FD16 16 Channels Wireless Microphone Signal Antenna Amplifier

Categories:

Antenna Amplifier

Download:

Keywords:

Inquire Now

Product details

FD870 16 Channels Wireless Microphone Signal Antenna Amplifier

Functional features:
◆ 32 level adjustable RF signal level
Used to optimize reception efficiency using different cables

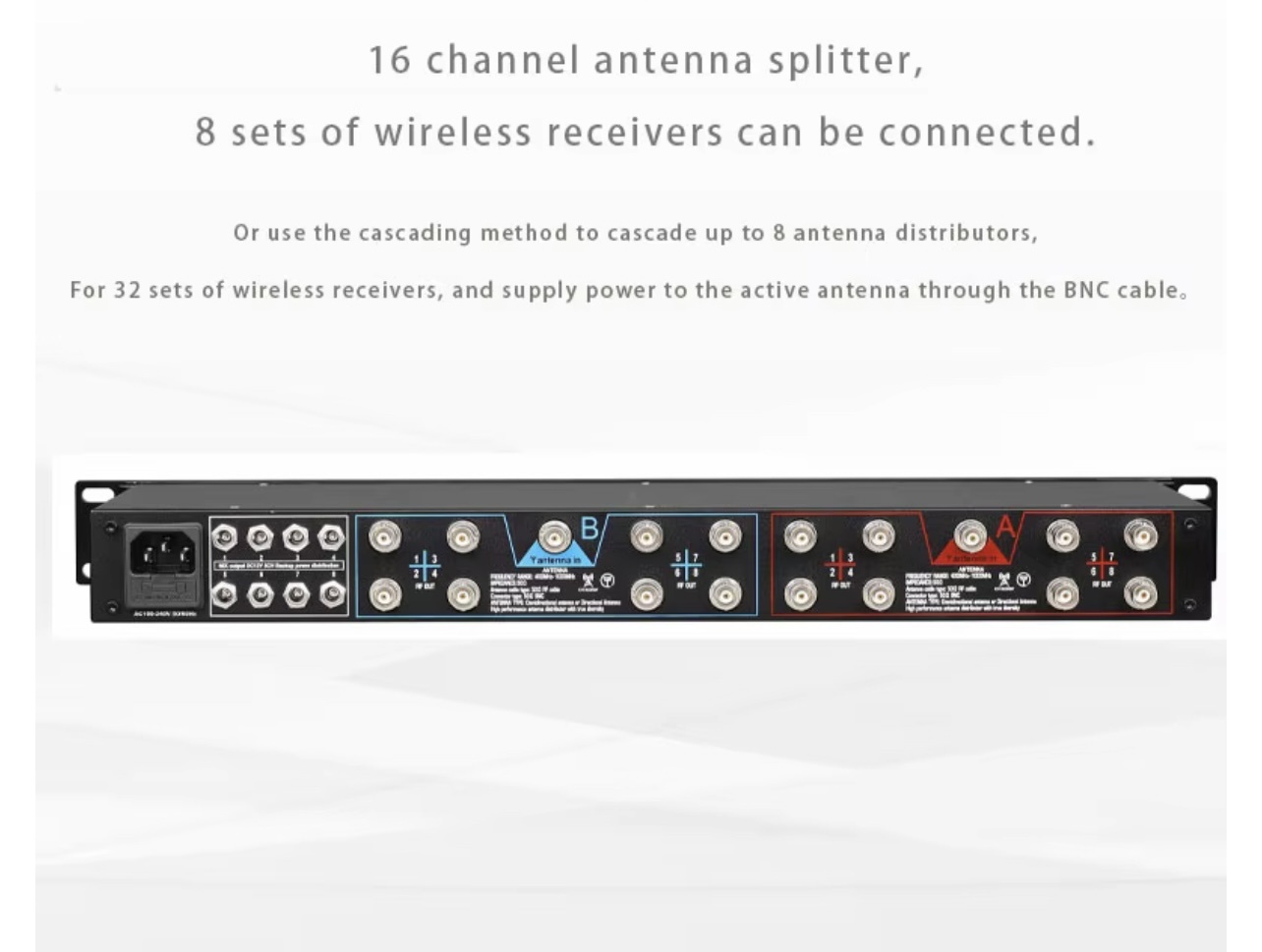

◆ Link output
8 wireless receivers can be connected to form a large system
◆ RF overload LED
Monitor the quality of RF signal in time
◆ HD LCD display
◆ Machine code record is adjustable
◆ Panel lock key function to prevent performance error operation

Host technical parameters:
Frequency: U segment 450-1000MHz
Input/output impedance: 50 ohms
Channel: 2*8 (16 channels) output
Display mode: HD LCD display
Interface: Type B bus
Gain (adjustable at 32 stages) : -24dB to +6dB step by 1dB
Third-order intermodulation intercept point: +38dBm (typical)
Gain flatness: + -1dB
Power output: DC8*1A
Input power supply: AC100-260VAC/T2A 47-63 Hz

Blade technical parameters:
Frequency: U segment 460-970MHz
Display mode: HD matrix LCD screen
Control switch: Touch the button
Interface: Type B bus
Output impedance: 50 ohms (SWR<=1:1.5)
Gain (Max.) : 12dB
Radiation Angle: 90 degrees
Integrated CNC adjustable: -6 - 12dB
Third-order intermodulation intercept point: +45dBm (typical)
Gain flatness: + -1dB
Power Supply: +9V to 12V (typical), 150mA
