TRAIS TS-700T Professional 2 Channels Gooseneck Wireless Conference Microphone with Clear Sound

Categories:

Professional Wireless Conference Microphone

Download:

Keywords:

Inquire Now

Product details

TS-700T Professional Wireless Conference Microphone

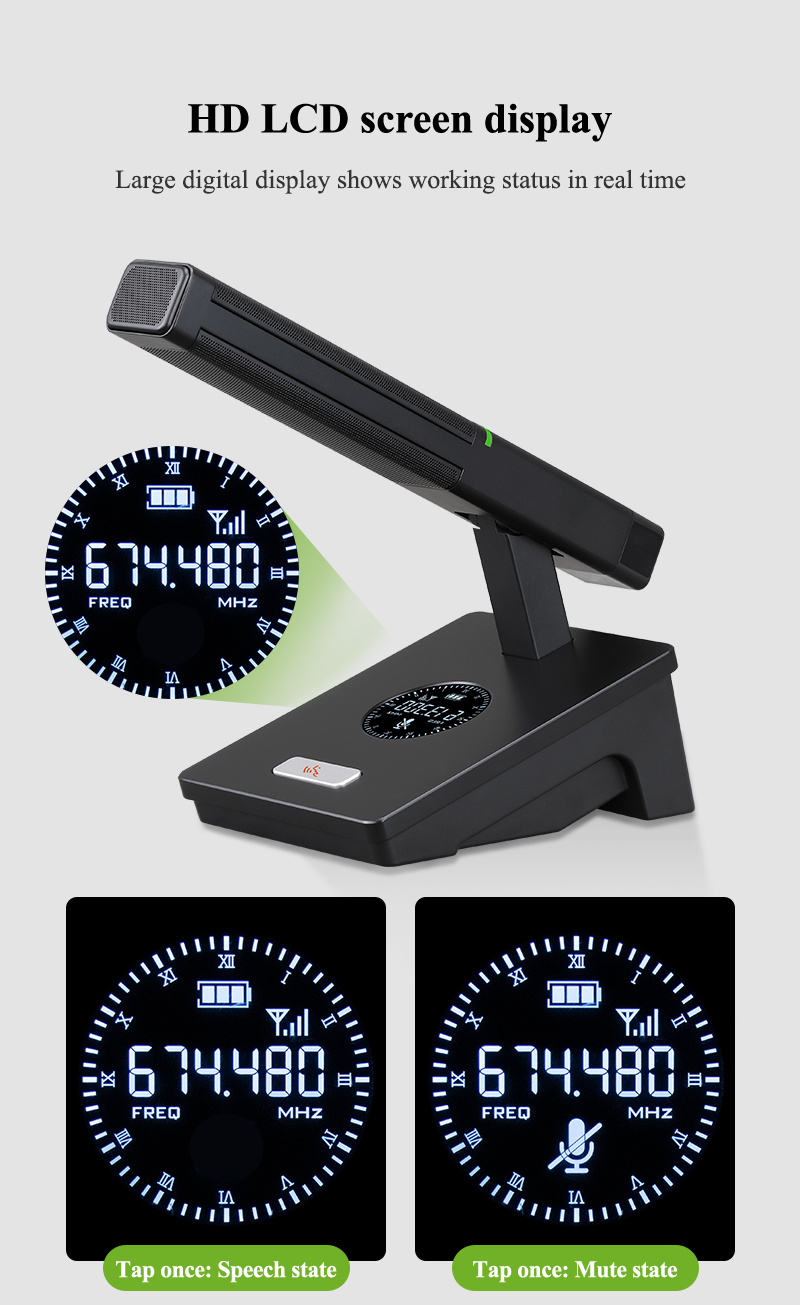

Two-color display screen, when the wireless signal connection is lost, the receiver screen shows an orange backlight, once the connection is established, the screen shows a blue and white backlight. The large character display can quickly observe the screen information, and the handheld battery power display on the receiver is particularly noticeable. The new UR-700 series is equipped with a powerful one-click radar scanning function. After clicking the SET key on the panel, the screen immediately enters the full-frequency radar search state, and it takes only a few seconds to set a clean frequency that can be used and match with the microphone. Completely no longer worry about the problem of wireless interference, multiple overlapping machines without crosstalk phenomenon. There will be no more noise from all performances.

Product Features:
1. UHF transmission signal, infrared frequency, manual frequency selection is convenient for field debugging;
2. Adopt stable PLL digital phase-locked loop synthesis technology and intelligent digital circuit to avoid interference frequency;
3. Frequency range: UHF 640~690MHz, more suitable for a wide range of use;
4. Two channels up to 200 frequency points to receive signals, handheld Fanny pack universal, strong anti-interference ability;
5. Each channel is equipped with a unique ID number to enhance anti-interference function;
6. Dual-screen LCD display, display working channel, working frequency, RF receiving signal, AF audio signal, lock screen indicator, real-time power of conference seat, real-time feedback system working status;
7. Receiver is equipped with 2 rubber receiving antennas to enhance the received signal with decent appearance;
8. The back is equipped with 2 balanced outputs and 1 hybrid unbalanced output, suitable for connecting various external devices;
9. With switching noise elimination circuit, to avoid huge impact noise when opening the switch, to ensure the safety of the post-amplifier system and loudspeaker;
10. With automatic search idle frequency point function, easy to select clean frequency point, with lock button function, to prevent human error;
11. 200 frequency points adjustable, showing the humanized high-tech design;
12. Conference microphone built-in detachable high capacity 18650 battery, base with TYPE-C charging interface, can be charged separately, full of intelligent power off, safe and assured, for your long conference use escort;
13. Built-in mute function button of the meeting base, tap the real-time display mute or speak icon, long press the switch machine to prevent unnecessary screaming caused by the use of multiple microphones;
14. Square tube: full metal cavity + square tube design, multi-directional pickup (optional detachable gooseneck long rod);
15. Two-way power monitoring, real-time power or undervoltage of the meeting seat, the host visual display;
16. With a special capacitor core + self-created audio processing technology, effectively improve the pickup distance and speech clarity, rich middle and high frequency, large dynamic range, sound and magnetic and mixed thick sense, prominent human voice, have a better conference experience;
17. Use distance: Open environment: 80-100 meters; Complex environment: 50-80 meters;
18. Suitable for all kinds of meetings and speeches;
19. Equipment delivery 2*18650 batteries and 1*TYPE-C dock.

Transmitter Parameters:
Power supply: DC 3.7 (3.7V 18650)
Battery life: 10-15 hours
Adjacent frequency interference ratio: >80dB
Microphone power consumption: 120mA
Audio dynamic range: ≥106dB
Carrier frequency: 640~690MHz
Type: Capacitive
Frequency stability: ±0.001%
Polarity mode: single directivity
Frequency response: 20Hz-16KHz
SNR: >90dB
Microphone pickup sensitivity: -32±3dB@1KHz (long tube)
Microphone pickup sensitivity: -35±3dB@1KHz (square tube)

Comprehensive parameters:
Frequency range: 640~690MHz (can custom frequency)
Frequency quantity: 200
Modulation mode: FM
Channel interval: 250KHz
Frequency stability: ±0.001%
Dynamic range: ≥100dB
Maximum frequency offset: ±30KHz
Frequency response: 40Hz ~ 16KHz
Comprehensive SNR: >60dB
Comprehensive distortion: <0.5%@1KHz
Working distance: about 100m (open area without interference)
Working temperature: -10℃~50℃
