T16 Digital mixer with innovative design and powerful DSP function to effectively integrate the digital mixer system, to bring users a very professional functional experience.

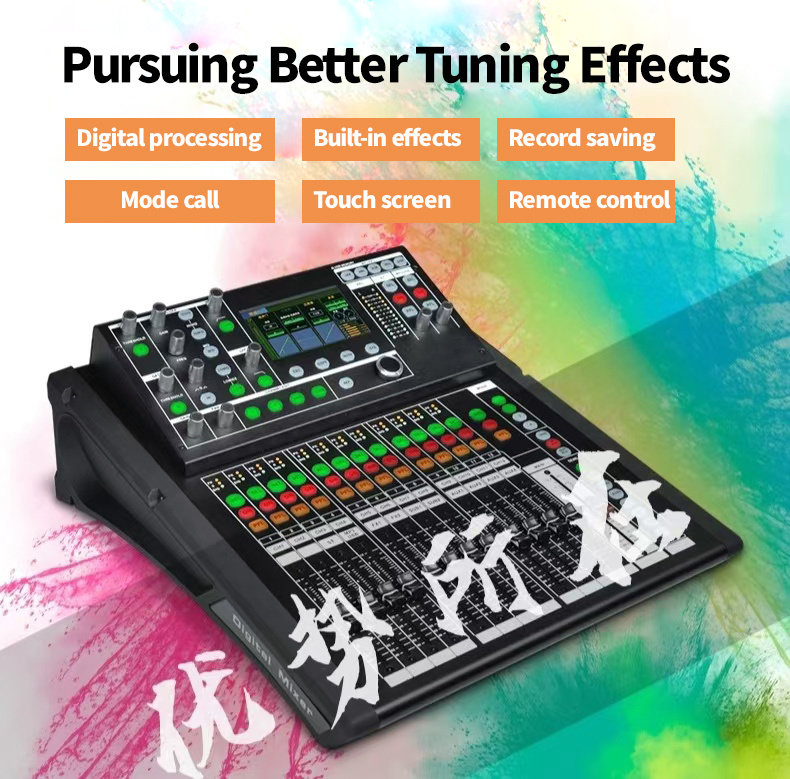

Digital mixer product advantages

● Record keeping

Audio processing link record saving parameter data function

● Touch screen

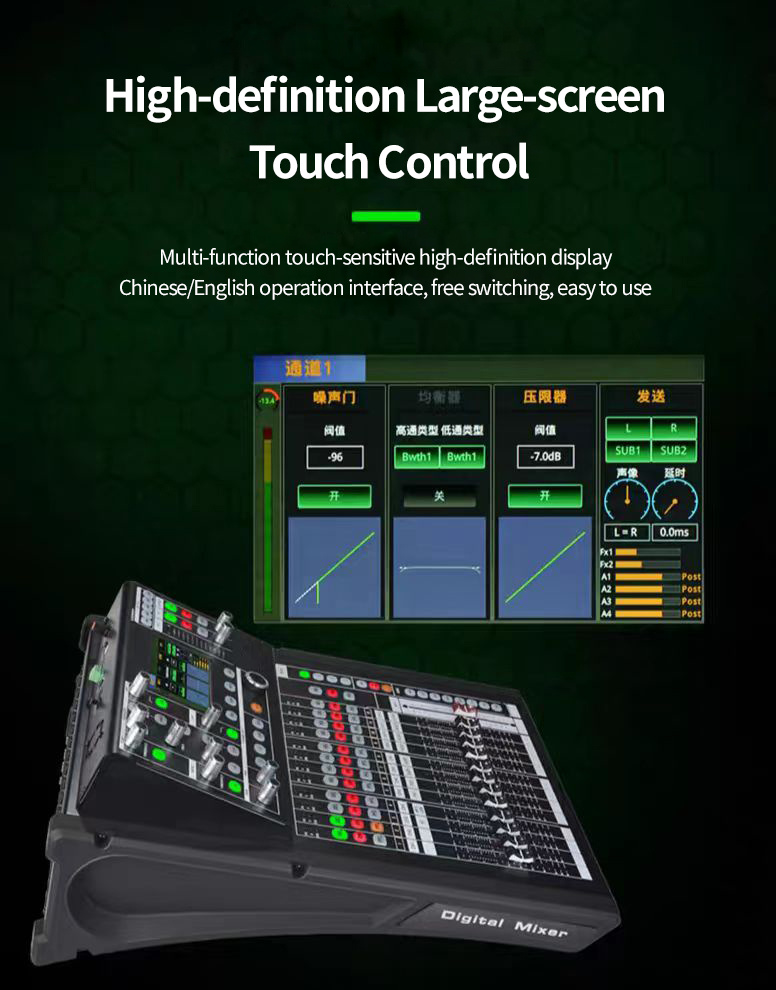

5 "multifunctional intuitive HD capacitive touch display

● Multi-operating system remote control

The T16 can be controlled by Android, Ipad, PC control software, including gain, EQ, dynamic, fader

● Built-in effects

Built-in equalization, pressure line, EQ and many other effects

● One-click call

Tuning link memory scene one click call

● Record the gain size of each scene parameter, and there are two fader layers for quick switching and quick viewing of the volume status

● S/PDIF input, USB playback and recording

Breaking the traditional only MP3 input, analog signal input, can quickly read the USB electronic disk in Chinese and English songs, with the next song, the previous song, play, pause, recording and other functions, very convenient field operation

● Chinese and English fast switching display

● Support RS232/TCP central control

Open the central control protocol code

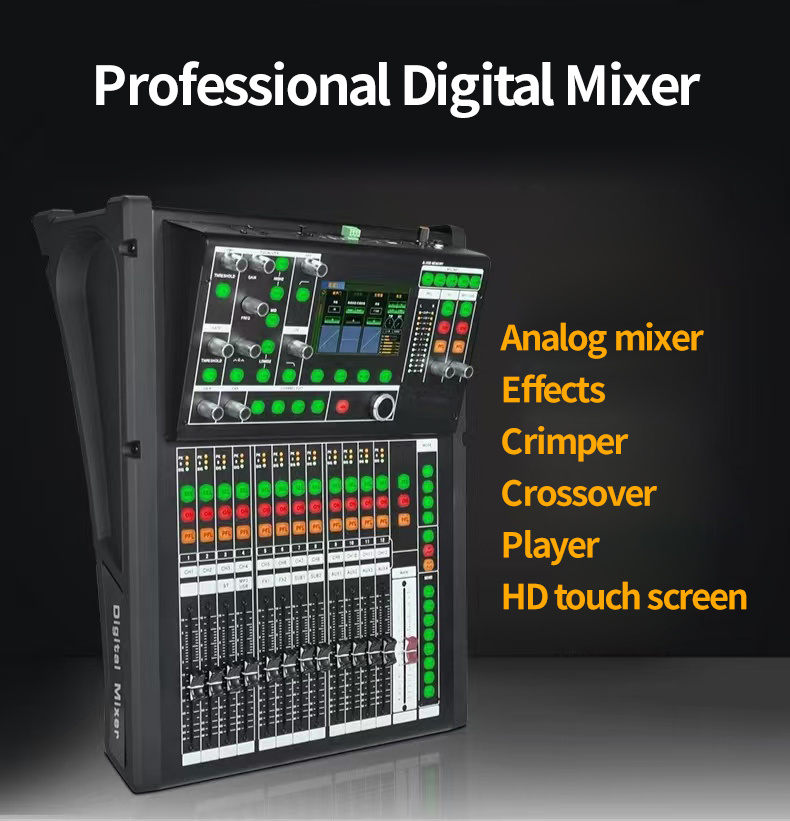

Digital mixer = pressure limiter + effect + divider + analog mixer + player

Break with tradition and get great value for money

Product parameter

● Based on Linux operating system development, without fear of viruses, more secure and stable operation

Upgraded version of the 4-core CPU processor, 1G main frequency, 16 seconds of rapid startup, faster running speed

Chinese operation display, the operation is more convenient and intuitive

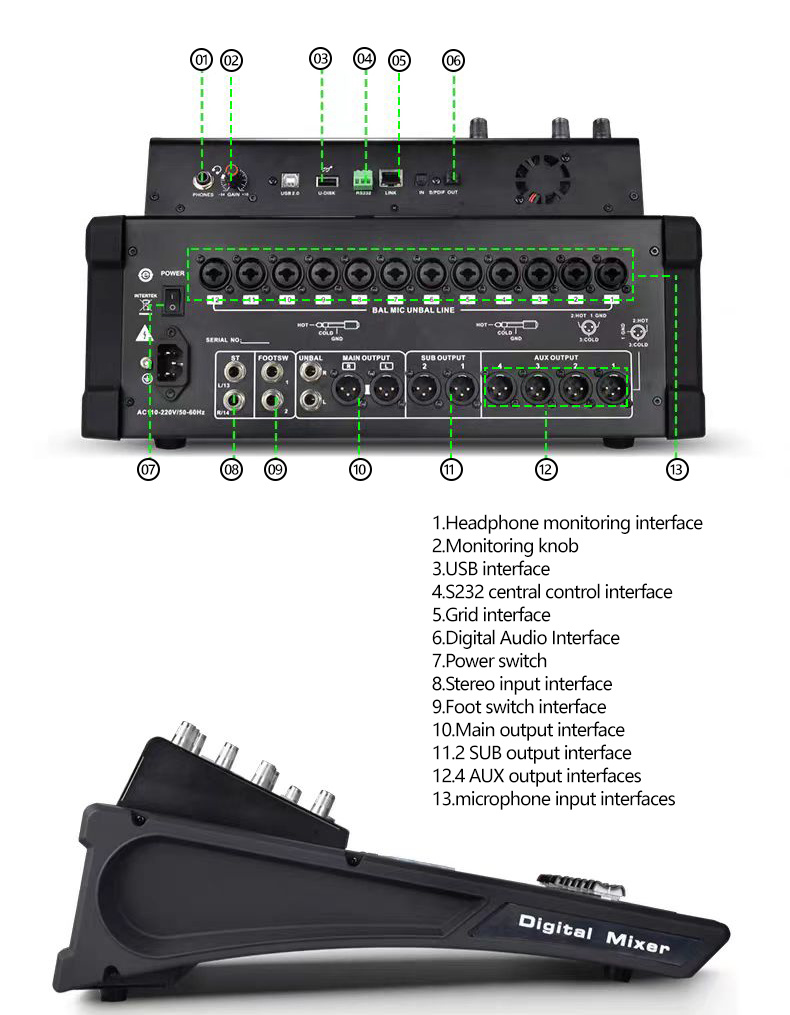

● 12 MIC/Line input, 1 set of 6.35 stereo input, digital input: fiber/sound card, MP3

● Input channel sound and image adjustment

● MIC input gain adjustment (digital gain)

● +48V phantom power supply (MIC channel can be opened and closed independently)

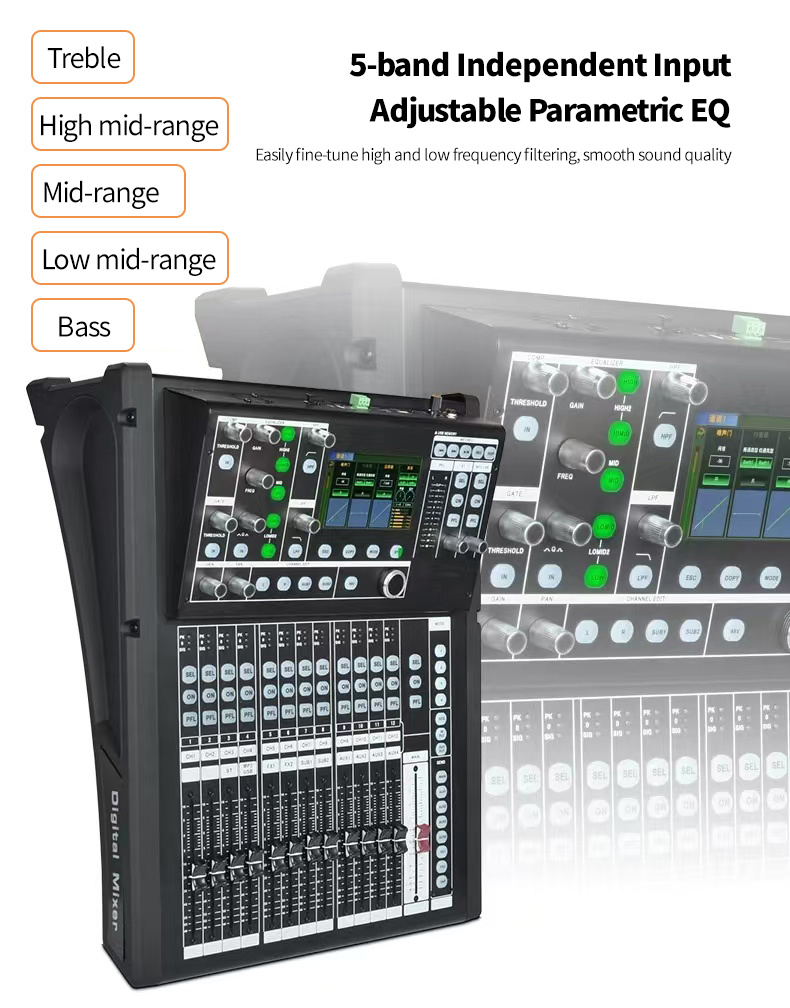

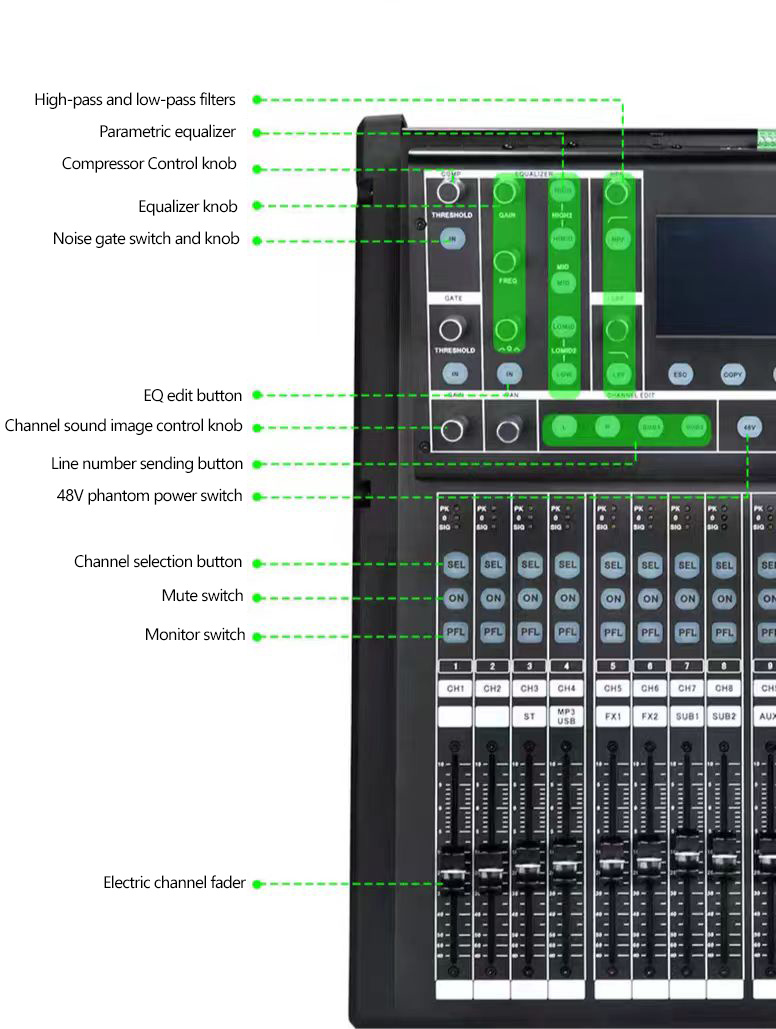

● Each input channel has built-in pressure limiter, noise gate, high and low pass, 5-stage parameter balancing, delay, sound and image balance adjustment of the transmission channel

● Fast copy of channel parameters

● Input and output EQ ON/OFF

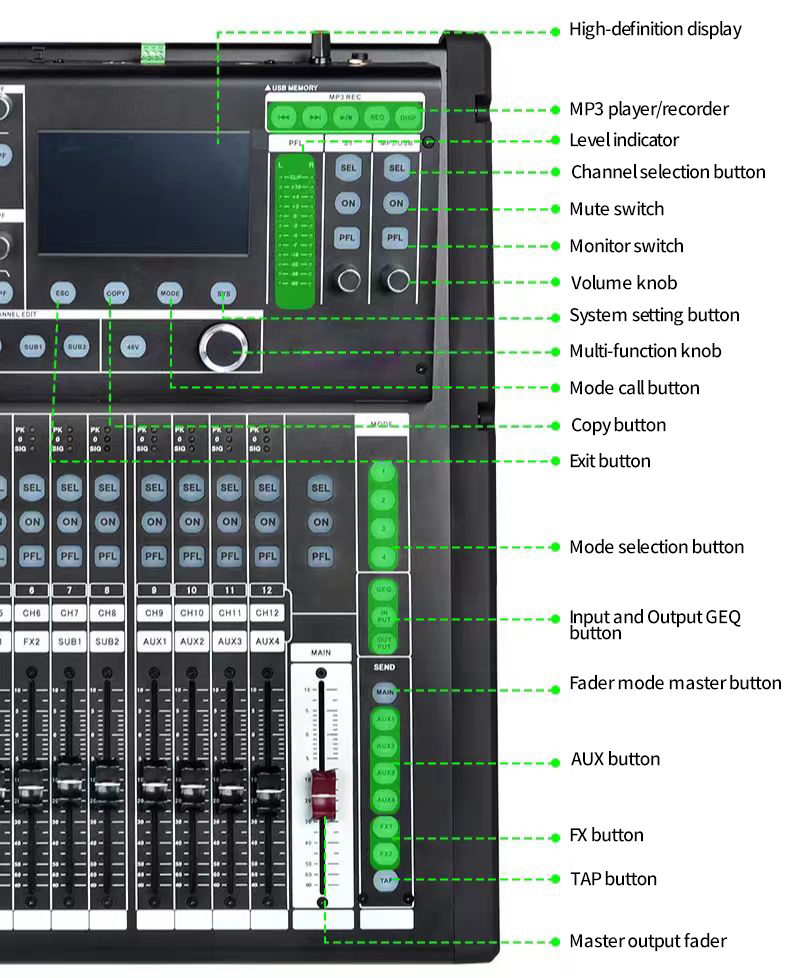

● Multi-function knob

● Each channel is equipped with multi-function menu, mute and monitor

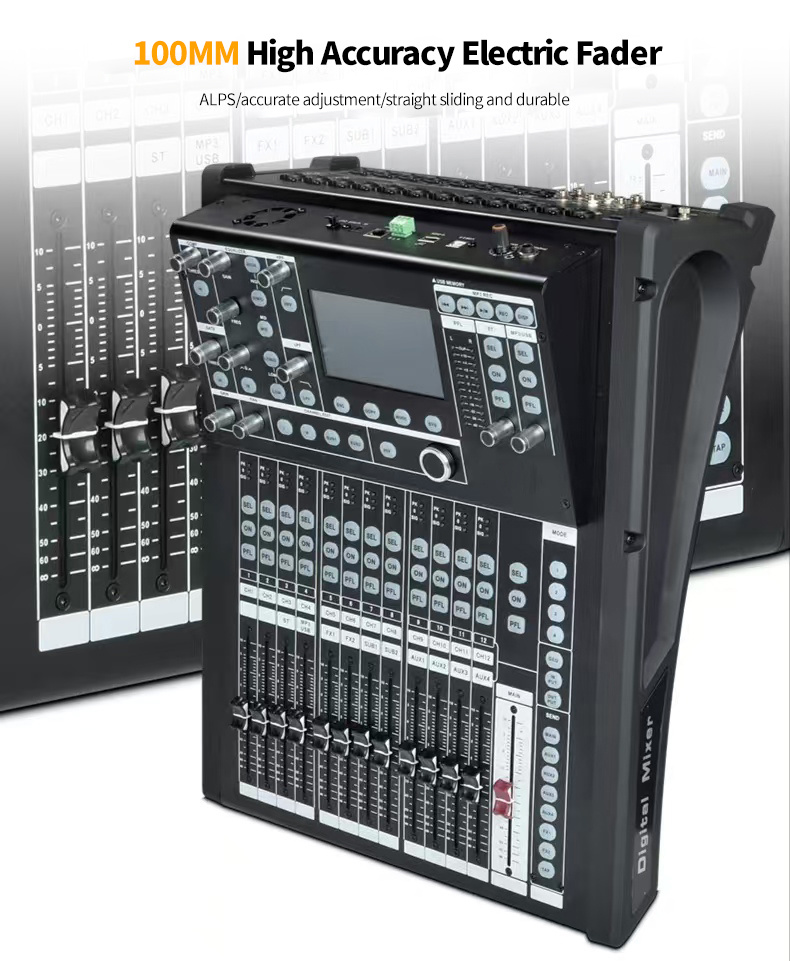

● Channels are equipped with 100MM electric push rod, signal, peak light (13 electric faders)

● 8 signal outputs (main output L,R,4 AUX outputs,2 marshalling outputs)

● AUX output (before/after fader)

● Output processing: high-low pass filter, 12-stage parameter equalization, compressor, delay, phase

● Digital recording function

● User can customize the layer, output mixed editing function

● Double row 3-color 12-segment level indicator

● Built-in sound card (MP3, Android, Ipad, PC direct playback, recording)

● 4 quick scene call modes, 20 scene storage, can customize the scene name, scene seamless switching, no break.

● Storage and retrieval of user parameters (can be managed on a PC)

● Built-in two independent DSP effects

● Two layers of page turning, simplified operation, more convenient to use

● FX foot switch interface

● Fiber input/output

● Multi-operating system control software (IOS, Android, WINDOWS)

● Support wired network port adjustment (or external router wireless adjustment)

● 5-inch 800*480 resistance touch screen

Technical parameter

Input sensitivity MIC: -60db LINE:-50db

Maximum output voltage: 3V MAX

Distortion degree (THD) : < 0.03% (1KhzFull Power)

Electronic gain: -32db to 10db, 0.6 to 0.7 step

Input impedance: MIC > 5K; LINE > 10K

SNR: > 85db

Frequency response: 20HZ-20KHZ+/-1db

Parameter balancing: Input 5 segments (20HZ--20KHZ)±12dB,Q0.3~15 adjustable

Output parameter equalization: output 15 segments (20HZ--20KHZ) ±12dB

Q0.3 to 15 Adjustable

Output delay: 0-30ms

Threshold, ratio: +6dB to -50dB

Impact/release: 1--127ms

Controls:

Network: A fast Ethernet (100Mb0/s) port can be connected with a CAT5 cable

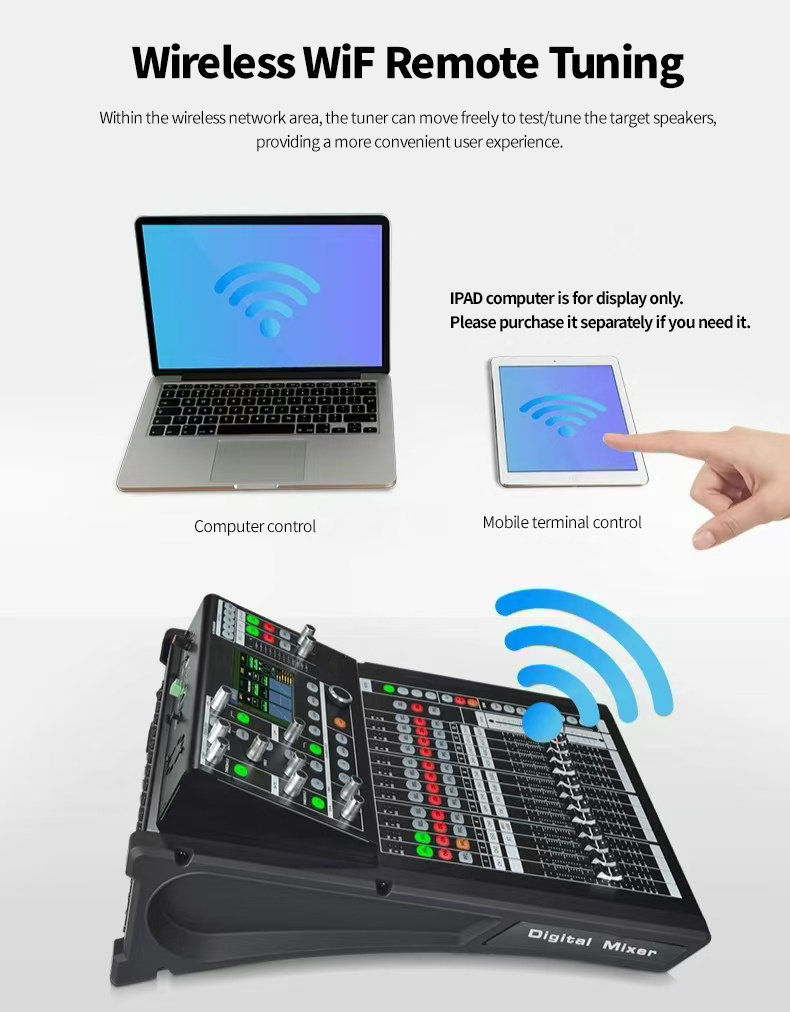

A computer for controlling mixer parameters via TCP/IP, or connecting to a wireless router (access point) for live mixing control using the T16 app on an IPAD or Android phone, or connection control via the T16 control software interface for Windows

Power supply: AC(250V-110V)/50-60HZ

Size/Weight

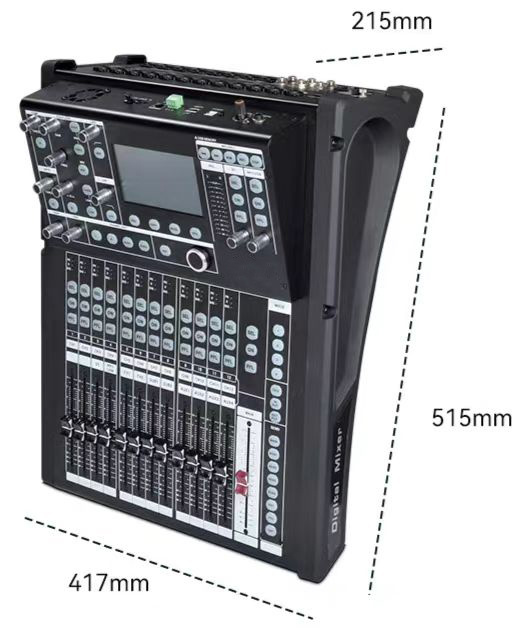

Length, width and height: 515*417*215MM

(Length includes 6.35 input seat, width includes side panel, height includes foot; Knobs not included)

Net weight: 7.69KG; Gross weight: 11.8KG

Packing size: 465*690*300MM

T16-mixer is a professional and stylish APP control software for digital mixers. It is controlled by WIFI wireless connection, which can easily operate the T16 digital Mixer remotely, so that you can experience the fun of professional mixing

APP download method:

Open the APP Store on Apple iPad, click Search, enter "T16" or "T16-Mixer" to search and download

Main application scenarios

Meeting room, multi-function hall, small performance, small band, government, school, bar, wedding company, rental company, banquet hall, military, cultural auditorium, cultural center, exhibition and so on.
