Product details

TD series D technology is the industry benchmark of digital power amplifier, a number of independent research and development of innovative technology, breaking through the industry pain points. Good quality, reliable, stable, and attention to detail. The fixed frequency design of pulse width modulation guarantees optimal performance and a high degree of predictability, ensuring that the module is protected from intermodulation components. The form factor and modular design provide maximum flexibility and scalability for every application. Powerful and flexible signal processing tools allow users to adjust the module's performance to perfectly match your design. A complete set of protection features to protect your entire audio design.

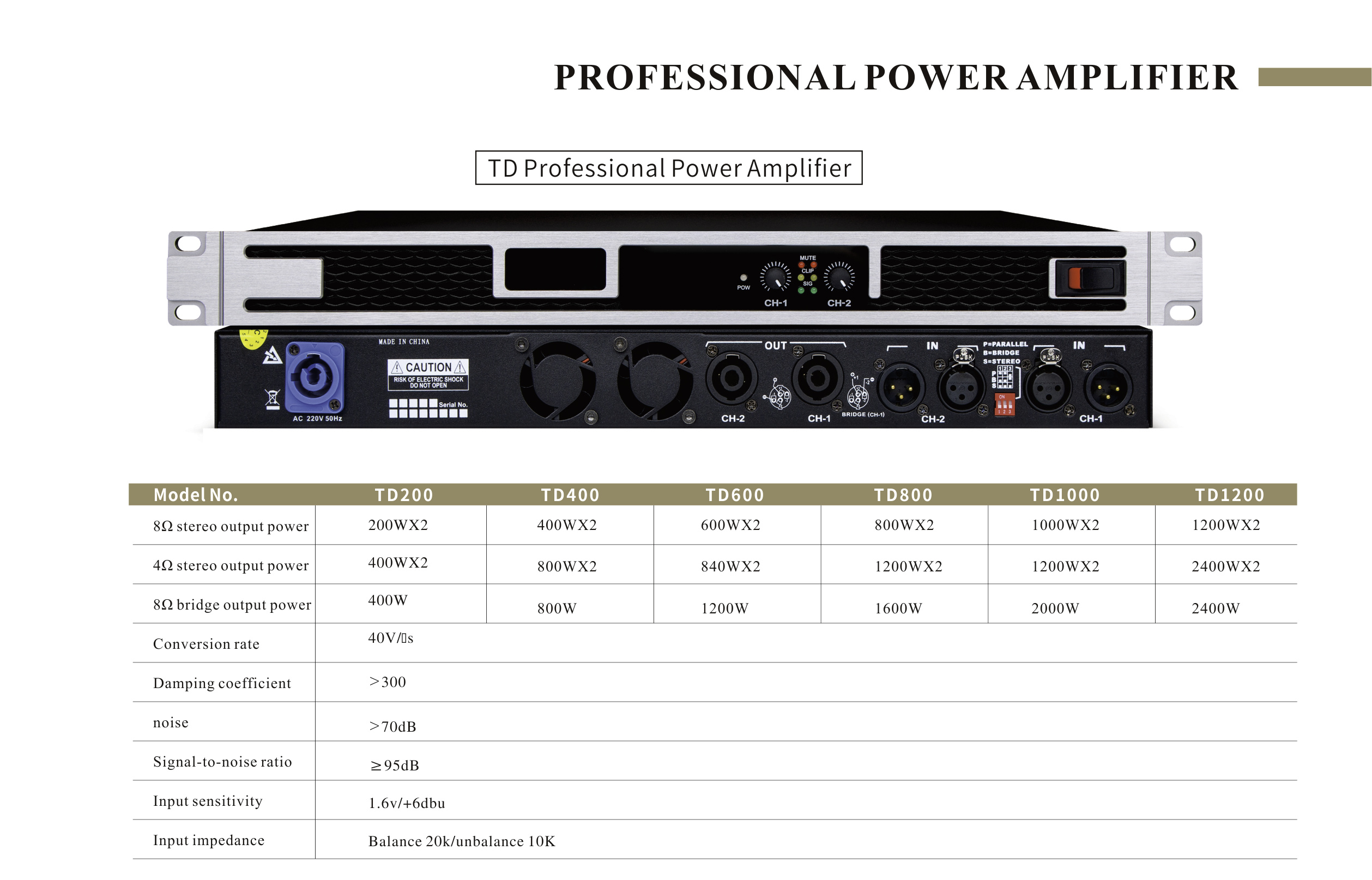

Audio frequency
Frequency response 20hz-20khz(+0/-1db)@1w,80
The S/N ratio is 115db
Crosstalk separation -70db@1khz(40)
Input sensitivity @8Ω 1.6v/+6dbu
Maximum input level 2.7v/+10.8dbu@32db gain
Input impedance 10kΩ balance
Thd+n <0.09%,-0.1w< 0.05%)
Di100 <0.05%, from 0.1w(usually <0.002%)
Rotation rate <50v/us@8q, input filter bypass
Damping coefficient >500@100hz
Ac power supply
Rated power requirements Ac100v-240v,50/60hz
Operating voltage Ac90-264v
power factor Coso>0.90@4Ωfull power
Maximum output power 1/8@8Ω 600VA
Ambient operating temperature 0°-40°C/32-104°F
Heat dissipation: fan, variable speed, temperature control
