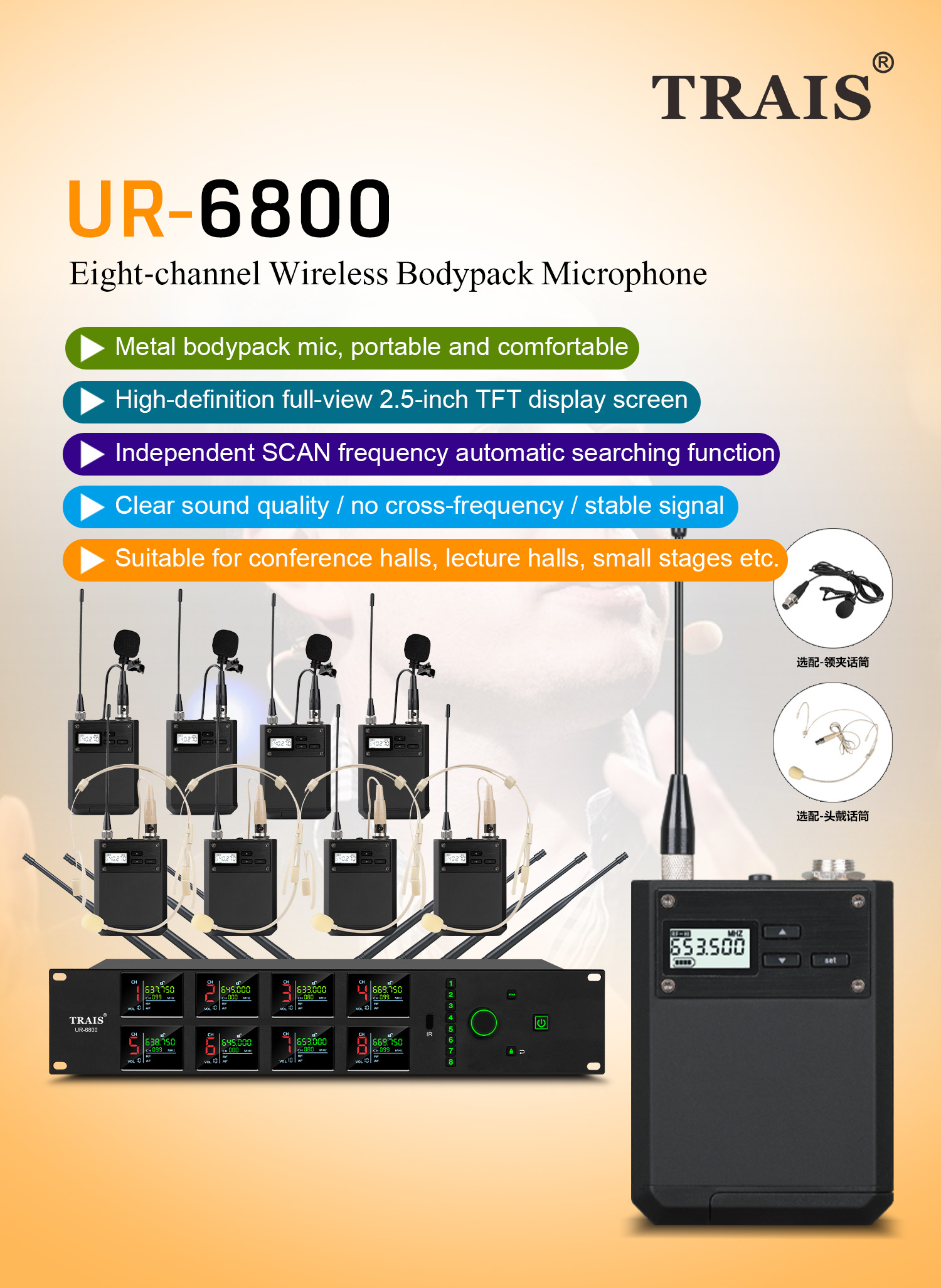

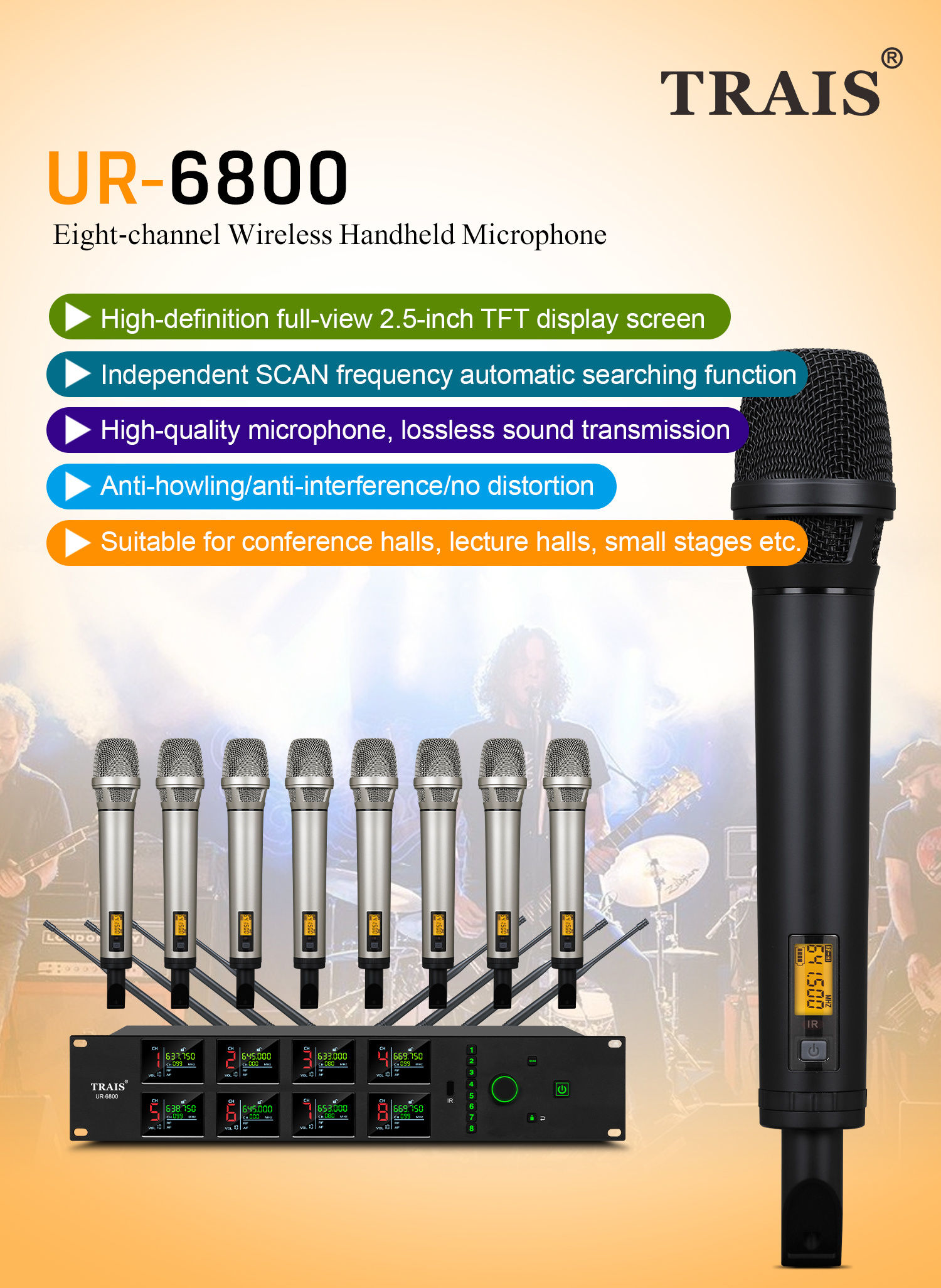

TRAIS UR-6800 Eight Channels Professional Handheld Bodypack Wireless Microphone (Optional: Handheld/Bodypack/Headset/Lavalier Mic)

● Innovative unique antenna separation technology to maintain stable reception in extremely complex environments. ● True diversity wireless system, receiver multistage high-frequency amplification, with high sensitivity. ● Receiver adopts Phoenix plug, Cannon and 6.35 hybrid output, which can meet all conference peripheral equipment. ● Receiver adopts HD full viewing Angle 2.5-inch TFT display, and uses shuttle knob instead of traditional complex button operation. ● Using professional acoustic design and unique Mic core design technology, high-fidelity audio processing, restore the most real human voice. ● Advanced audio compression and expansion technology, rich in middle and high frequency, large dynamic range.

Categories:

Professional Wireless Microphone

Download:

Keywords:

Inquire Now

Product details

UR-6800 Eight Channels Professional Wireless Microphone

Product Features:
1. Using innovative and unique antenna separation technology, it can maintain ultra-stable receiving function in extremely complex environment;
2. UHF true diversity receiver, optional eight channel independent signal system, receiver adopts multi-level high-frequency amplification, has high sensitivity, anti-explosion sound;
3. Independent SCAN frequency automatic search function can quickly scan frequency with less interference in the working environment and lock frequency;
4. Multiple noise monitoring circuit, special ID authentication system, so that it has strong anti-interference ability;
5. Receiver adopts unique single-channel independent Phoenix plug independent output, Canon independent output and hybrid 6.35 output, which can meet the perfect combination with all conference peripherals;
6. Receiver adopts HD full viewing Angle 2.5-inch TFT display, flying shuttle rotary knob independently set each channel, receiver panel adopts aluminum alloy cutting supply, showing noble quality;
7. Receiver and transmitter through IR infrared frequency matching technology, one key synchronous frequency matching;
8. Professional performance level phase lock circuit, with noise lock noise control and digital pilot technology, when the transmitter is turned off, the pilot control will mute the AF signal to suppress the noise, while the corresponding receiver will be muted to ensure the effective blocking of interference signals;
9. HD TFT display indicates RF and AF signal strength, battery status, diversity channel indication (A/B), frequency, frequency group/channel and other working status;
10. Each channel is equipped with a unique ID number to enhance anti-interference function, supporting up to 6 four-channel receivers or 3 eight-channel receivers at the same time (that is, 24 transmitters);
11. With switching noise elimination circuit, to avoid huge impact sound when opening the switch, to ensure the safety of the post-amplifier system and loudspeaker;
12. True diversity wireless system is designed for large conference halls and high-end conference venues to provide reliable transmission;
13. Microphone adopts professional acoustic design and unique core design technology, advanced audio compression and expansion technology, rich in middle and high frequency, large dynamic range;
14. The wide use range is about 80 meters; Optional handheld mic, headset mic, lavalier mic, conference mic.
15. The frequency can be set at 500MHz/600MHz by pressing the button on the back of receiver. After switching frequency, the system shuts down and restarts to set the frequency successfully.

Receiver Parameters:
EIA standard 1U
Frequency response: 55Hz ~ 16KHz ± 3dB
Frequency range: 610~670MHz (can custom frequency)
Frequency quantity: 200
Modulation mode: FM
Channel interval: 50KHZ
Frequency stability: ±0.005%
Dynamic range: 100db
Offset: ±45KHZ
Audio frequency response: 40HZ-18KHZ(±2db)
Comprehensive SNR: >105db
Comprehensive distortion: ≤0.5%
Working temperature: -10℃~+50℃
Effective working distance: generally more than 80 meters (wide area)
Mode of oscillation: PLL frequency synthesis
Output socket: 1 way MIXOUT6.35 mixed output 1 way Phoenix output, 4 way BALOUT independent output, 4 way Phoenix output
Input voltage: DC12-DC15V 1500mA
Dimensions: 8 channels: 485mm (W) X 88mm(H) x 190mm(D)

Transmitting Parameter:
Battery Specification: 2 x 1.5V AA battery
Adjacent frequency interference ratio: >80dB
Microphone power consumption: 120mA
Audio dynamic range: ≥106dB
Carrier frequency: UHF 610MHz--670 MHz
Frequency stability: ±0.001%
Polarity mode: single directivity
Frequency response: 20Hz-16KHz
SNR: >90dB
